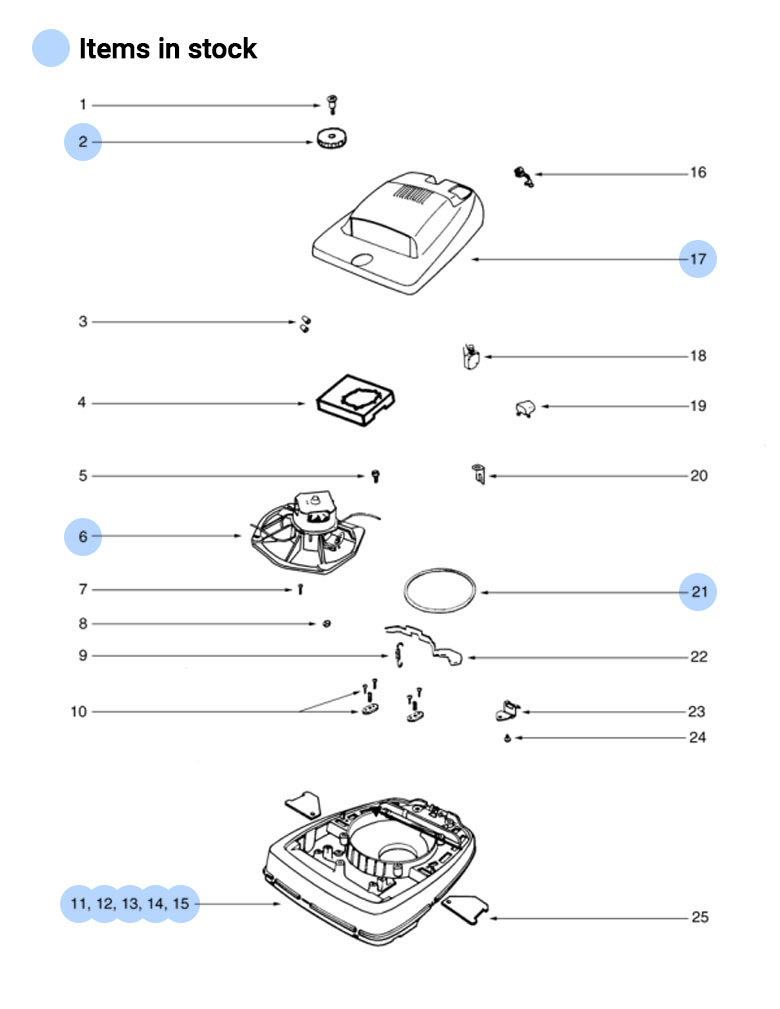

Parts Schematic
SC679_2
Base & Hood
| # | Description | SKU |
|---|---|---|
01 | ***ADJUSTMENT SCREW SANITAIRE PERFECT | – |
02 | ||
03 | Wire Splice 5 Package Of 5 | – |
04 | Separator Assembly | – |
05 | *** SCREW EUREKA PK 10 SPEC ORD | – |
06 | ||
07 | Screw sold individually | – |
08 | Nuts – Package 10 | – |
09 | *** NLA FOOT PEDAL SPRING | – |
10 | Clamp & Screw Assembly Package | – |
11 | ||
12 | Cam (Right) | – |
13 | Cam (Left) | – |
14 | Rivet – Shoulder Package | – |
15 | Steel Washers – Package 1 | – |
16 | *** EUREKA STRAIN RELIEF BUSHING PKG10 | – |
17 | ||
18 | *** SWITCH EUREKA 3320 SPEC ORD | – |
19 | Button Switch | – |
20 | Clip-Switch | – |
21 | ||
22 | Pedal – Foot | – |
23 | *** BAG RING RETAINER- SPEC ORDER | – |
24 | *** SCREWS 10 PER PKG EUREKA SPEC ORD | – |
25 | *** EUREKA WHEEL COVER SPEC ORDER 50% REST | – |
