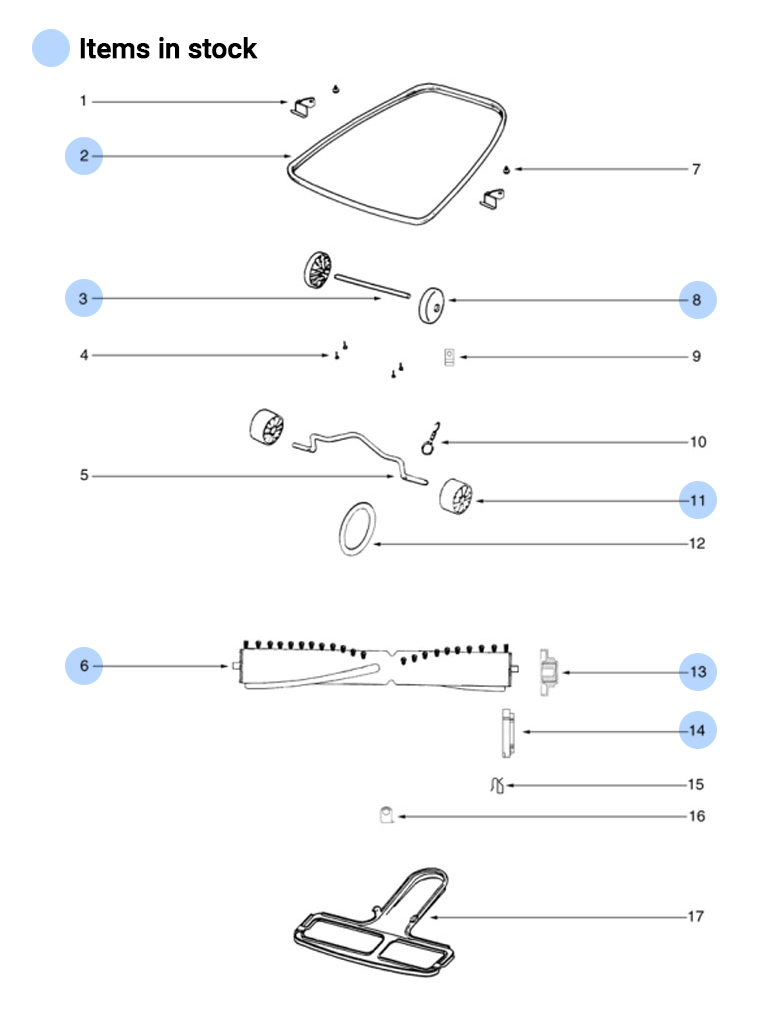

Parts Schematic
SC679_3
Furniture guard & brush roll
| # | Description | SKU |
|---|---|---|
01 | Clip – Furniture Guard Pk | – |
02 | Guard – Furniture | – |
03 | ||
04 | *** SCREWS 10 PER PKG EUREKA | – |
05 | ||
06 | ||
07 | Screw Package | – |
08 | ||
09 | Clip Package (5) | – |
10 | *** AXLE SPRING SANITAIRE SC886 | – |
11 | ||
12 | Belt Package Assembly (Upright) | – |
13 | Cap & Bearing Assembly | – |
14 | *** EUREKA RUBBER END CAP SPEC | |
15 | Clip – Wire | – |
16 | Bracket Bushing | – |
17 |
